1. Brief introduction of peanut oil squeezing machine:

The peanut oil squeezing machine developed by Zhongxing Machinery is a type of highly energy-saving automatic oil squeezing equipment. Through the screw press, the billet is continuously pushed forward in the press chamber. The machine squeezes crude oil under the action of dynamic squeezing, reducing manual operations. . In the working process of the peanut oil squeezing machine, in addition to the feeding hopper, the squeezing chamber is the main operating part, which is composed of a squeezing screw shaft and a cylindrical squeezing cage. The squeezing screw shaft is composed of a plurality of squeezing screws and pitch rings sleeved on the shaft. Each screw of the peanut oil squeezing machine has the required screw pitch and screw depth, and the screw pitch of each screw on a shaft is gradually shortened from the feed port to the discharge port, and the screw depth gradually becomes shallower, so that the volume of the press chamber changes from The inlet to the outlet gradually decreases. After the billet enters the press chamber, it advances along the snail stage to the outlet, and the pressure on it gradually increases, thereby gradually squeezing out the oil. A gasket is installed between the squeezing rod and the squeezing rod of the cylindrical pressing cage of the peanut oil squeezing machine to form an oil gap, and the squeezed crude oil flows out through this gap.

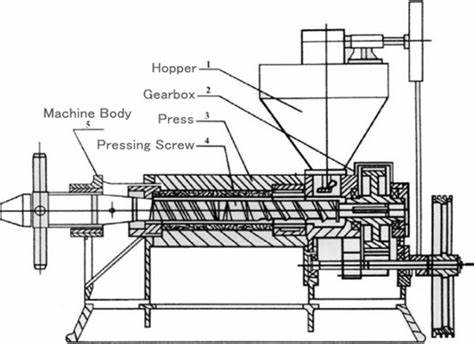

2. Structure of peanut oil squeezing machine:

One of the main features of the peanut oil squeezing machine is that it can be squeezed cleanly, saving time and electricity. The power of the motor is just right, which can realize the pressing needs under various working conditions. It can not only squeeze peanuts, but also squeeze up to a dozen kinds of oils. Powerful. When the peanut oil squeezing machine is squeezing different oils, the vacuum filtration system can filter the peanut oil residue reasonably to make the peanut oil more pure.

3. Advantages of peanut oil squeezing machine:

(1) Automated production, saving labor costs. The peanut oil squeezing machine adopts fully automated production, and the vacuum oil filtering system provides a guarantee for the stable production of the equipment, without manual control, reducing the risk of low oil yield caused by human factors. In a stable state, the equipment can process 300 kg to 500 kg of peanut seed material per hour, the oil output rate is 5 percentage points higher than that under manual operation, and it can process 25 kilograms of peanut oil per hour.

(2) The new type of pressing process, the old oil press has many shortcomings in the production, such as slow heating, sudden shutdown and blockage of the oil. The peanut oil squeezing machine is redesigned on these problems and adopts new technology to make up for the defects. For example, using a high-power heating ring, it only takes ten minutes to heat the press chamber to working temperature, and there is no need to start up for a long time to preheat; Under circumstances, the peanut oil squeezing machine stops working, and the snails in the squeezing chamber will be blocked by the oil. Even if it is powered on again, it will be very laborious and consume a lot of equipment. The new technology has set a reverse function for the equipment to make the snails squeezed. Reverse, withdraw the slag, and the equipment can be operated again.
